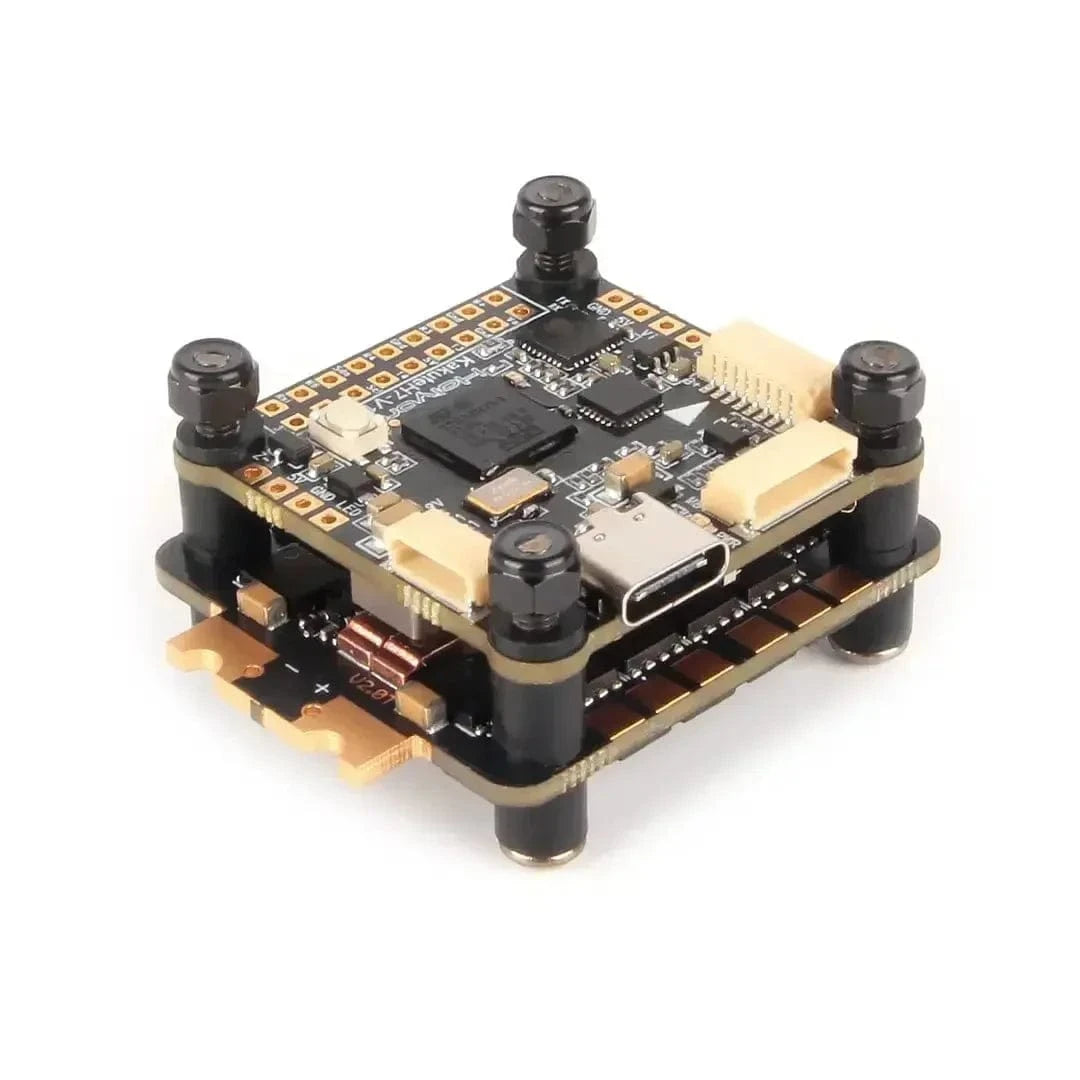

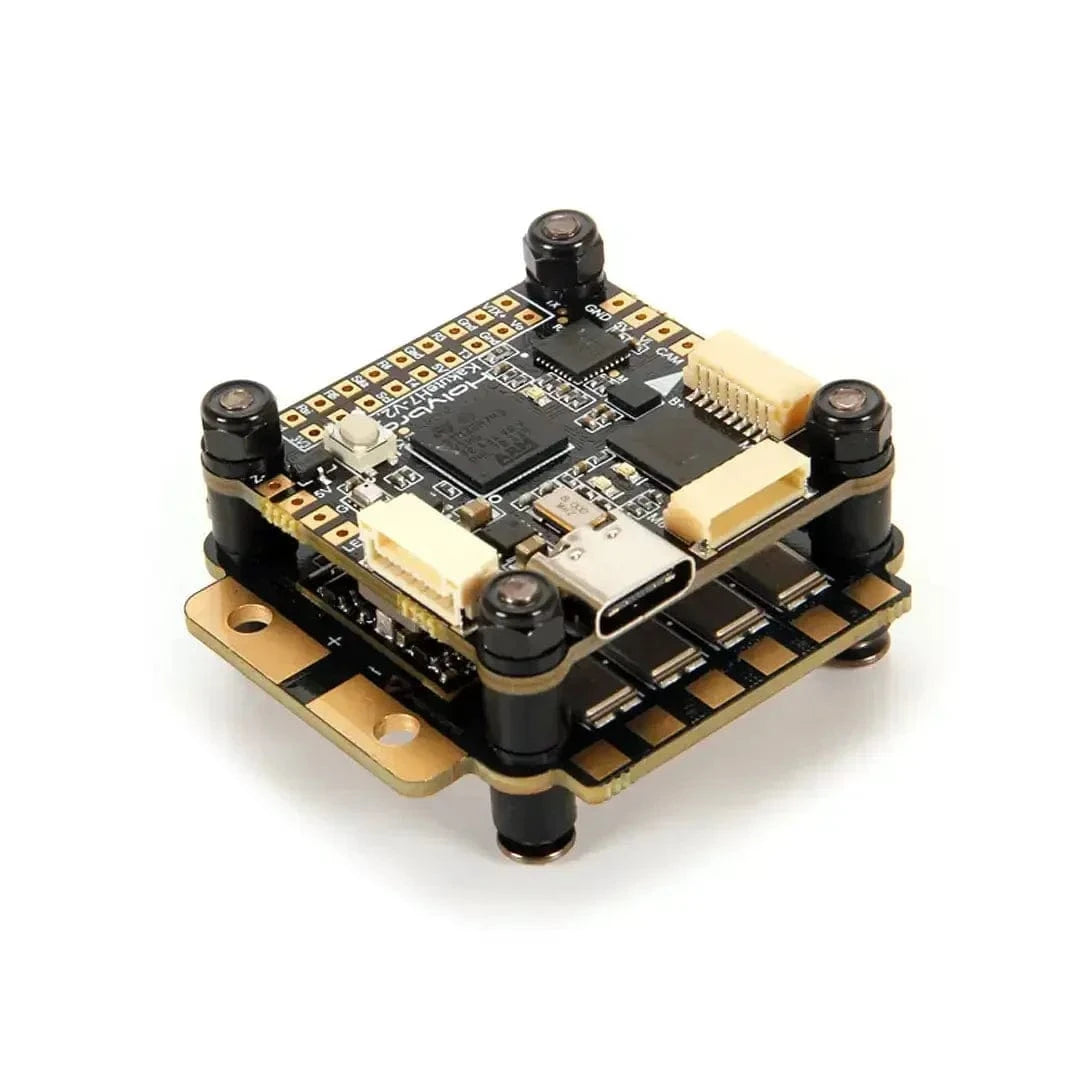

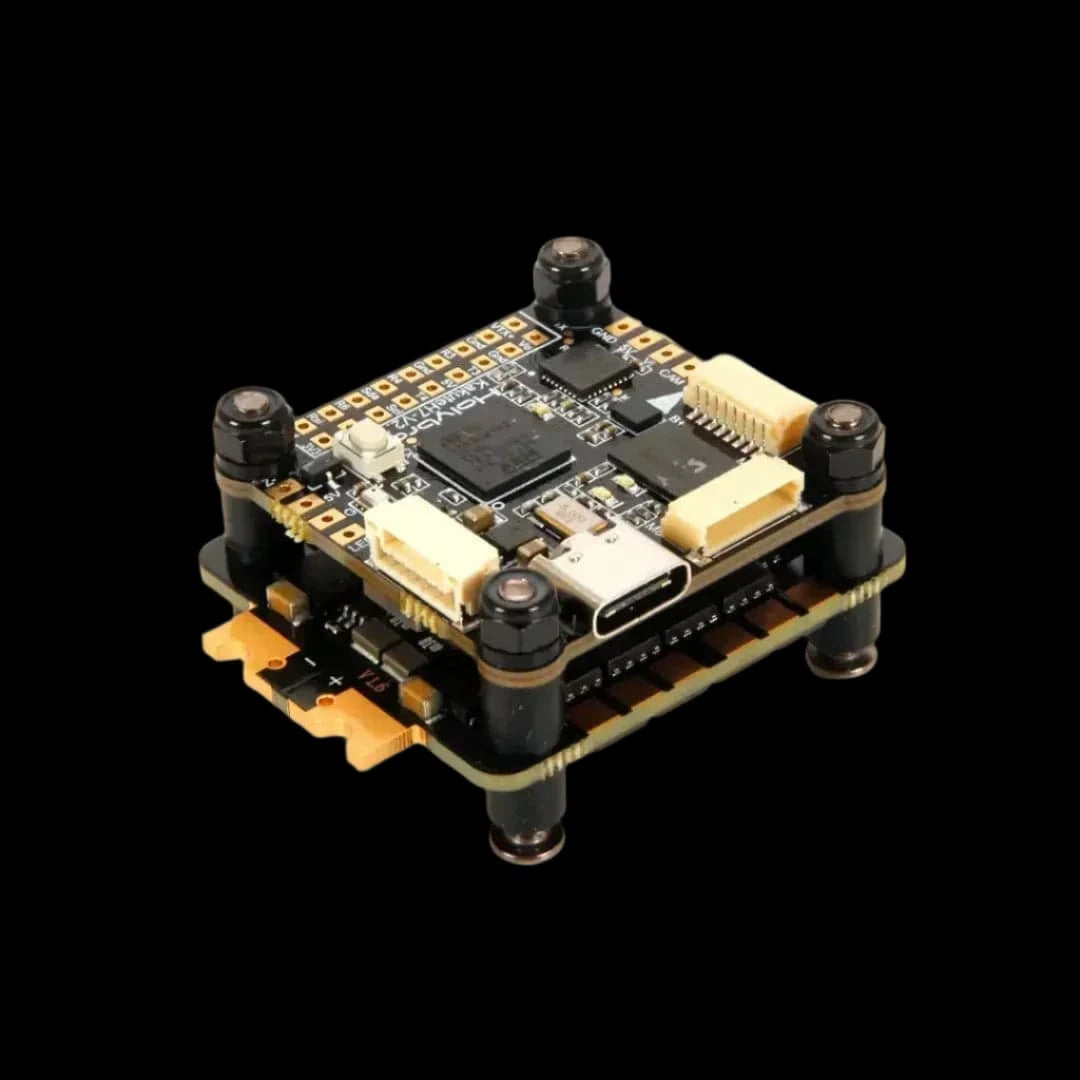

RAZORCORE H7 STACK – Flight Controller + 4-in-1 ESC Powertrain (HolyBro Kakute H7 V1.5)

The RAZORCORE H7 STACK is your all-in-one UAV powertrain nerve center, engineered for high-speed control, brutal motor output, and real-time responsiveness. Built around the latest HolyBro Kakute H7 V1.5 Flight Controller (ICM-42688-P gyro), this stack pushes your flight precision to the edge — and holds.

Paired with either the Tekko32 F4 50A or Matel 65A 4-in-1 ESC, this combo delivers unshakable ESC sync, AM32 or BLHeli32 firmware compatibility, and clean power distribution even in full-throttle dives or extreme FPV racing. Ideal for tactical drone builders, heavy-lift FPV rigs, or field-repair custom quads.

Key Specs:
• MCU: STM32H743
• Gyro: ICM-42688-P
• USB-C Connector
• 9V 3A BEC + 5V BEC
• ESC Options:
 — Tekko32 F4 50A (AM32)
 — Matel 65A (AM32 or BLHeli32)
• 4-in-1 ESC with 128kHz PWM, DShot support
• Stack Size: Standard 30.5x30.5mm mount
• Weight: ~18g (FC) / ~16g (ESC)
• For 3–6S LiPo setups

🧰 Variant Options
• H7 V1.5 w/ 50A AM32 ESC
• H7 V1.5 w/ 65A AM32 ESC
• H7 V1.5 w/ 65A BLHeli32 ESC
